深圳蚝乡湖公园景观设计 | 译地事务所

香港译地 2021-06-07
原创
  • 项目名称:
    蚝乡湖公园
  • 项目地点:
    广东省 深圳市 宝安区 沙井街道宝安大道与北环路交界
  • 项目规模:
    13公顷
  • 设计公司:
  • 施工单位:
    中国十七冶集团、深圳文科园林股份有限公司、深圳时代装饰股份有限公司
  • 委托方:
    深圳市宝安区沙井街道办事处,华润置地城市运营管理(深圳)有限公司
  • 建成时间:
    2021
  • 图片来源:
    曾天培,章勇,廖文剑


蚝乡湖公园:被遗忘的调蓄池景观再生

Haoxiang Lake Park: Restoring the Forgotten Retention Pond

译地事务所设计的蚝乡湖公园占地13公顷,位于深圳市宝安区沙井街道,连接了排涝河、新桥河、万丰河、潭头河等四条城市河流。作为重要的雨洪调蓄池,一直为当地的防汛与截污起到重要作用。但由于日益恶化的水质,和周边工业厂房对环湖场地的占用,已逐渐被周边居民所遗忘。

The 13-hectare Haoxiang Lake Park, designed by eLandscript, is located in Bao'an District, Shenzhen. It is connected to four urban rivers including Pailao River, Xinqiao River, Wanfeng River and Tantou River. As an important stormwater retention pond, it has played an important role in local flood control and pollution interception. However, due to the deteriorating water quality and the occupation of industrial plants around the lake, it has been gradually forgotten by the surrounding residents.


▼ 项目鸟瞰

Bird view of the project  © 章勇

02 Haoxiang Park Overview Daytime 蚝乡湖公园鸟瞰日景.jpg

▼ 总平面图

Master Plan © 译地事务所

31 Master Plan of Haoxiang Park 蚝乡湖公园平面图.jpg


项目始于2019年,伴随广东省万里碧道的建设展开,蚝乡湖与周边流域共同开展生态治理,大幅提升了整体的水质,并通过城市更新的机会将环湖的空间打造为一座开放的滨水公园,以弹性的再生手段带来积极的环境影响,并解决不断增长的社区居民对开放空间的使用诉求,和城市快速发展带来的社会问题。

This project started in 2019. Haoxiang Lake and the surrounding watershed jointly carried out ecological management, which greatly improved the overall water quality. Through the opportunity of urban renewal, the space surrounding the lake is re-positioned and planed as an open waterfront park. It cites flexible regeneration methods to bring positive environmental impacts, and solve the growing community residents' demands for the use of open space, and the social problems brought about by the rapid development of the city.


▼改造前后空间对比

Before &  after renovation ©曾天培

01 Haoxiang Park Before & After 蚝乡湖公园改造前后对比-1.jpg



水岸重联

Reconnect The Waterfront

一个850米的步行环道将四片河岸空间重新连接,并在不同的区域与场地碰撞出蚝心虹桥、水闸观景台、花廊驿站等景观锚点。花廊驿站的设计与LAAB合作,采用参数化的菱形屋面与幕墙。驿站两侧布置咖啡厅和洗手间,中间的开放空间与公园连为一体,是市民喜爱的休闲之地。

An 850-meter pedestrian loop reconnects the four riverside spaces, and collides with the site in different areas to create landscape anchor points, such as the Rainbow Bridge, the Sluice Overlook, and the Flora Trellis Café. The design of Flora Trellis Café collaborate with LAAB Architects, using parametric rhombus roof and curtain wall. Cafe and toilets are arranged on both sides of the station, and the open space in the middle is connected with the park, which is a popular leisure place for citizens.


▼花廊驿站

Flora Trellis Cafe ©曾天培

08 Flora Trellis Cafe 花廊驿站.jpg

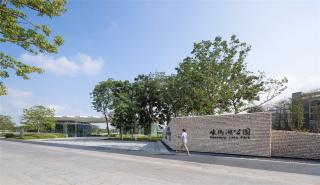

▼公园入口标识墙与花廊驿站

entrance logo wall  of park and  Flora Trellis Cafe  ©曾天培

09 Oyster Shell Logo Wall 蚝壳文化标识墙.jpg

▼花廊驿站与公园景观

The Flora Trellis Cafe and park landscape ©曾天培

13 Flora Trellis Cafe 花廊驿站-1.jpg

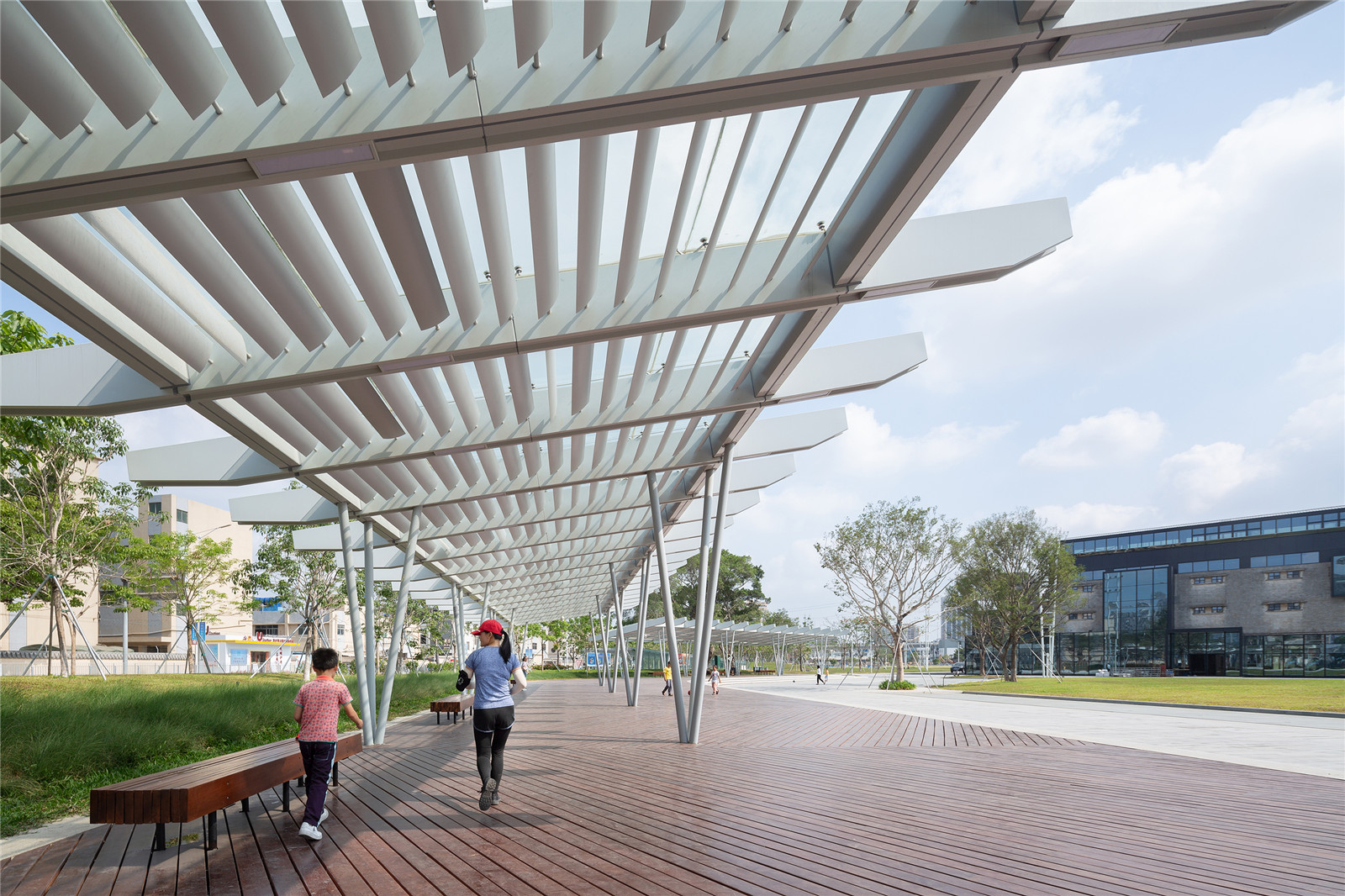

▼参数化设计的花廊驿站

Parametric rhombus roof of Flora Trellis Cafe  © 章勇

▼ 花廊驿站屋顶与施工过程

Flora Trellis Cafe Roof & Detail  ©曾天培

12 Flora Trellis Cafe Roof & Detail 花廊驿站屋顶与施工过程.jpg


蚝心虹桥的设计与SBP合作,采用了总长238米弧形钢箱梁结构,最大跨径为77米。为了最低化的影响河道与环境,一座跨河的虹桥应运而生,成为眺望公园和周边城市的最佳观景点。

The design of Rainbow Bridge collaborate with SBP, using a total length of 238 meters of curved steel box girder structure, with a maximum span of 77 meters. In order to minimize the impact on the river and the environment, a rainbow bridge across the river was born, becoming the best viewing spot for overlooking the park and surrounding cities.

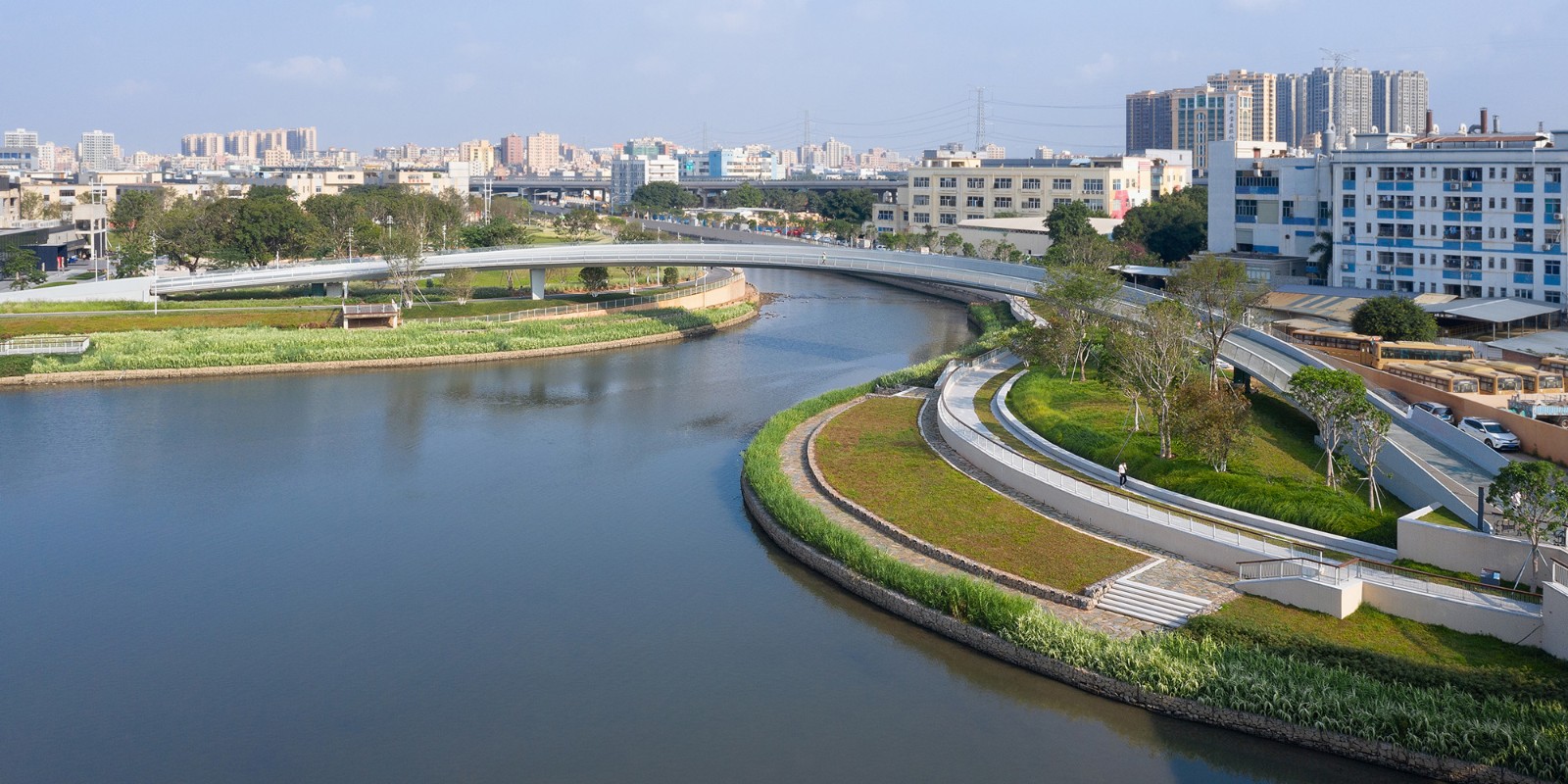

▼蚝心虹桥外观

external view of the Rainbow Bridge ©曾天培

05 Rainbow Bridge 蚝心虹桥.jpg

▼ 在桥上眺望公园景观

enjoy the view of the park  on the bridge ©曾天培

▼ 蚝心虹桥扶手及灯光照明

Rainbow Bridge railing & lights  © 曾天培



弹性再生

Resilience Regeneration

除了人工湿地、滞留草坪等低影响的环境设施,一个更具弹性的水岸也能加吸引市民体验和认知自然,了解对水环境的保护。经过缜密的行洪评价与分析,原有600米长的驳岸垂直挡墙被改造为生态石笼墙梯级湿地,在净化水体的同时,营造生态群落生境,并提供多维度的亲水可能,包括架高的芦苇水岸栈道、可被淹没于洪水之下的滨水步道等。

In addition to low-impact environmental facilities such as constructed wetlands and stranded lawns, a more flexible waterfront can also attract citizens to experience and recognize nature, and to understand the protection of the water environment. After careful evaluation of flooding analysis, the original 600-meter-long revetment vertical retaining wall was transformed into an ecological gabion-wall cascade wetland. While purifying the water body, it creates an ecological community habitat and provides multi-dimensional hydrophilic possibilities, including Elevated Reedbank Promenade, and the rock promenade that can be submerged under the flood.


▼芦苇水岸

Reedbank Promenade © 曾天培

19 Reedbank Promenade 芦苇水岸.jpg

▼ 芦苇水岸夜景

Reedbank Promenade night view © 曾天培

18 Reedbank Promenade Night View 芦苇水岸夜景.jpg

▼曲岸跳台

meandering promenade ©曾天培


16 Meandering Promenade 曲岸眺台.jpg

▼曲岸跳台夜景

meandering promenade Night View ©曾天培

15 Meandering Promenade Night View 曲岸眺台夜景.jpg



文化焕新

Cultural Renewal

团队提出保留原有的沙井发电厂建筑并改造为文创展馆,重申了城市遗产的文化属性,并围绕其周边设计了各类活动空间,包括面向学生和家庭亲子的蚝壳水迷宫和教育湿地、和面向文化团队和露天展演需求的大草坪。当地传统的蚝壳筑墙工艺也被用于项目当中,以建造的景墙向市民展示这项富于文化含义的高超工艺。

The team proposed to retain the original Shajing power plant building and transform it into a cultural and creative exhibition hall, reiterating the cultural attributes of the urban heritage, and designing various activity spaces around its surroundings, including the Oyster-Shell Water Maze and Education Wetland, a grand lawn gathering events and culture performances. The local traditional Oyster-Shell Wall technique was also used in the project, and the built scenery wall demonstrated this superb craft with cultural meaning to the citizens.


▼教育湿地的雨水收集和净化措施分析图

analysis of  Runoff & Water Treatment Solution in Education Wetland  ©译地事务所

32 Runoff & Water Treatment Solution in Education Wetland 教育湿地的雨水收集和净化措施.jpg

▼ 教育湿地

Education Wetland  © 曾天培

22 Education Wetland 教育湿地.jpg

▼ 在教育湿地中玩耍学习

playing and learning in the education wetland ©曾天培

23 Education Wetland 教育湿地.jpg

24 Education Wetland 教育湿地.jpg

25 Education Wetland 教育湿地.jpg

▼蚝壳水迷宫

Oyster Shell Water Maze ©曾天培

21 Oyster Shell Water Maze 蚝壳水迷宫.jpg

▼蚝壳水迷宫

Oyster Shell Water Maze © 章勇

20 Oyster Shell Water Maze 蚝壳水迷宫.jpg

▼风之廊

Wind Trellis ©曾天培

27 Wind Trellis 风之廊.jpg

28 Wind Trellis 风之廊.jpg

▼旱喷

fountain on the ground ©章勇
26 Wind Trellis 风之廊.jpg


蚝乡湖公园项目已于2021年建成并交付使用,并作为一年一度的蚝乡文化节的举办场所,成为展示当地文化的交流展示平台。

The Haoxiang Lake Park project has been completed and opened in 2021. It will be used as the venue for the annual Oyster Cultural Festival which is the grand platform for exchange and display of local culture.



▼ 在公园中奔跑穿行

having fun in the park  © 曾天培

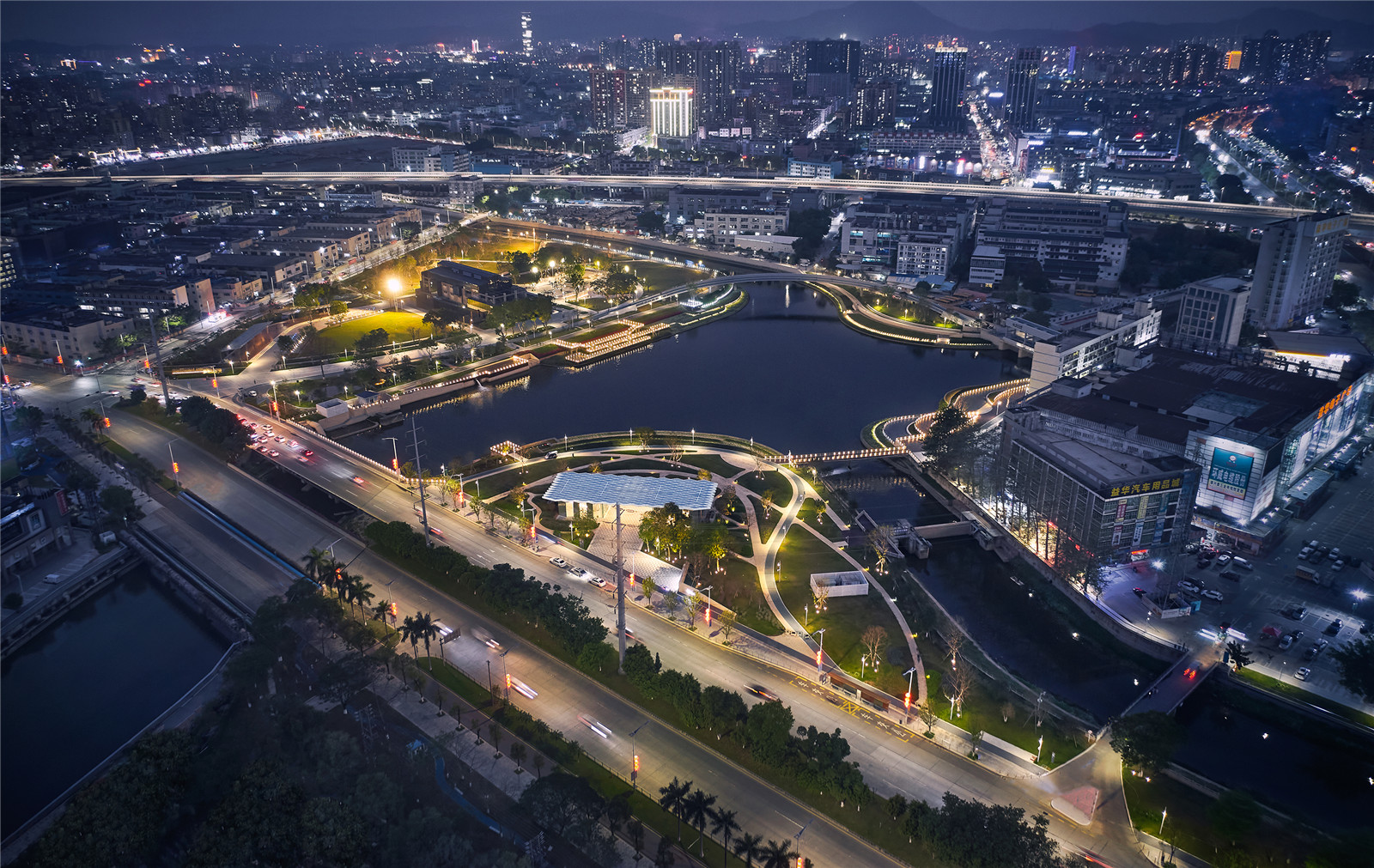

29 Having fun in the Park 在公园中奔跑穿行.jpg▼夜景鸟瞰

bird view in the night ©章勇

03 Haoxiang Park Overview Night Time 蚝乡湖公园鸟瞰夜景.jpg


项目信息

项目名称: 蚝乡湖公园

建筑事务所/公司/机构/单位: 译地事务所有限公司

事务所/公司/机构/单位网站: www.elandscript.com

联络邮箱: contact@elandscript.com

公司所在地: 中国 香港特别行政区

项目完成年份: 2021

建筑面积: 13公顷

项目地址:  中国 广东省 深圳市 宝安区 沙井街道宝安大道与北环路交界

主创建筑师:  张谦,唐筱璐

主创建筑师邮箱:  Z@ELANDSCRIPT.COM; T@ELANDSCRIPT.COM


项目参与者

设计团队:  张谦、唐筱璐、令狐小灵、张蓝兮、廖文剑、范武峻、张盼盼、Anantsorrarak Vorrarit、吴承阳、陈震宇、刘启文、陈昍逵、彭子珍、吴丹、伍思远、赵彩宏、吴芷莹、潘昕琳、虞倩倩、王怡

委托方: 深圳市宝安区沙井街道办事处,华润置地城市运营管理(深圳)有限公司

总体概念方案及扩初设计: 译地事务所有限公司

蚝心虹桥(方案、扩初设计):sbp施莱希工程设计咨询有限公司

花廊驿站(建筑及室内的方案、扩初设计):LAAB Architects

文创展馆(建筑及室内设计):趣城(上海)规划建筑设计有限公司

桥梁及建筑设计(施工图设计):上海市城市建设设计研究总院(集团)有限公司

景观设计(施工图设计):北京正和恒基滨水生态环境治理股份有限公司

湿地水生态:北京正和恒基滨水生态环境治理股份有限公司

监理单位:深圳市合创建设工程顾问有限公司

施工方:中国十七冶集团、深圳文科园林股份有限公司、深圳时代装饰股份有限公司


视觉信息

摄影师:  曾天培

邮箱:  93873062@qq.com

摄影师:  章勇

网站:  http://www.zyarch.cn/

邮箱:  zystudio@vip.126.com

摄影师:  廖文剑

邮箱: wenjian.liao@elandscript.com


General Information

Project Name: Haoxiang Lake Park

Architecture Firm: ELANDSCRIPT LIMITED

Website: www.elandscript.com

Contact e-mail: contact@elandscript.com

Firm Location: Hong Kong SAR

Completion Year: 2021

Gross Built Area: 130,000 sqm

Project location:  Shajing, Baoan District, Shenzhen, Guangdong Province, P.R.China

Lead Architects: Qian Zhang & Xiaolu Tang

Lead Architects e-mail: z@elandscript.com; t@elandscript.com


Additional Credits

Design Team: Qian Zhang, Xiaolu Tang, Xiaoling Linghu, Lancy Lanxi Zhang, Wenjian Liao, Leow Wujun Fan, Peggy Panpan Zhang, Anantsorrarak Vorrarit, Chengyan Wu, Zhenyu Chen, Qiwen Liu, Bill Huen Kwai Chan, Zizhen Peng, Dan Wu, Siyuan Wu, Caihong Zhao, Jennifer Tsz Ying Ng, Maisy Yan Lam Poon, Qianqian Yu, Yi Wang

Clients: Shenzhen Baoan District Shajing Bureau; China Resources (Shenzhen) Limited

Lead Landscape Architect: ELANDSRIPT LIMITED

Rainbow Bridge (Concept to Design Development): schlaich bergermann partner

Flora Trellis Café (Concept to Design Development): LAAB Architects

Oyster Cultural Exhibition Hall (Architecture & Interior): ARCity Office

Rainbow Bridge (Construction Drawing): Shanghai Urban Construction Design& Research Institute

Architecture (Construction Drawing): Shanghai Urban Construction Design& Research Institute

Landscape Construction Drawing: Beijing ZEHO

Wetland & Water Ecology: Beijing ZEHO

Supervision Unit: Shenzhen Hechuang Engineering Consulting Co., Ltd.

Construction: China Seventeenth Metallurgical Group; Shenzhen Wenke Garden Co., Ltd., Shenzhen Shidai Zhaungshi Co., Ltd.

Media Provider

Photo credits :  Tianpei Zeng

e-mail: 93873062@qq.com

Photo credits :  Yong Zhang

website: http://www.zyarch.cn/

e-mail: zystudio@vip.126.com

Photo credits :  Wenjian Liao

e-mail: wenjian.liao@elandscript.com
